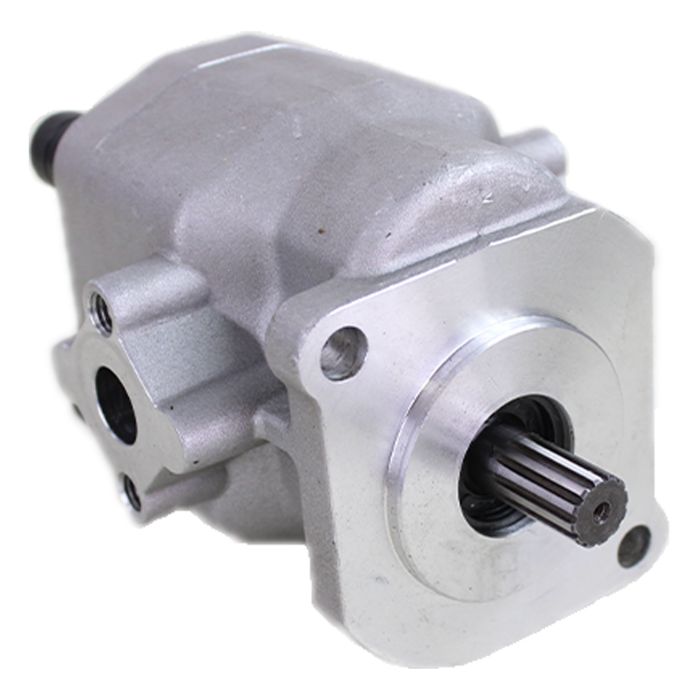

Hydraulic Pump for Kubota (See Notes)
Part Number
E-31351-76100
$525.00
In stock
- Package Quantity: 1
- Replaces Kubota no(s): 31351-76102 (31351-76100 Old Part#)
- PLEASE MEASURE THE BELOW SPECS BEFORE ORDERING TO MAKE SURE YOU ARE ORDERING CORRECT PUMP FOR YOUR APPLICATION
- WITH ENGINEERING CHANGES MADE TO THE OEM PUMP (THIS PUMP IS LATEST VERSION), WHEN REPLACING PUMP PREVIOUS TO THE CHANGES MADE, YOU WILL NEED TO ORDER UPDATED DELIVERY PIPE PART# E-32430-38215. THE OLD PIPE WILL NOT WORK WITH THIS PUMP AND BOLTS NEEDED TO INSTALL BOTH INLET PIPE AND DELIVERY PIPE HAVE CHANGED. (SEE BELOW BOLT SPECS)
- 12 Spline Shaft
- 1-1/2" Center To Center Holes (2) On Inlet Side
- 1-7/16" Center To Center Holes (4) On Delivery Side
- To Mount Pipes Use Bolts: (2) M8x1.25 X 30 MM (Inlet Pipe) & (4) M6x1.00 X 25MM (Delivery Pipe)
- Flush Hydraulic System, Use New Filters and Fluid Prior To Installing Pump
- Compatible With Kubota Tractor(s): L2050DT (Dual Traction 4wd), L2250F (2wd), L2350DT (Dual Traction 4wd), L2500DT (Dual Traction 4wd), L2550DT (Dual Traction 4wd), L2550F (2wd), L2600DT (Dual Traction 4wd), L2650F (2wd), L2950F (2wd), L3000F (2wd), L3000DT (Dual Traction 4wd), L35
| Part Number | E-31351-76100 |
|---|---|
| Model | L2050DT, L2250F, L2350DT, L2500DT, L2550DT, L2550F, L2600DT, L2650F, L2950F, L3000DT, L3000F, L35 |
| Variation | L2050DT (Dual Traction 4wd), L2250F (2wd), L2350DT (Dual Traction 4wd), L2500DT (Dual Traction 4wd), L2550DT (Dual Traction 4wd), L2550F (2wd), L2600DT (Dual Traction 4wd), L2650F (2wd), L2950F (2wd), L3000DT (Dual Traction 4wd), L3000F (2wd) |
